The Porta Handrail System balances safety and style.

  • Contemporary round timber dowel handrail
  • Simple to install
  • Stylish high-grade stainless steel and matte black fittings
  • Fast and flexible to install
  • Ideal on-site handrail solution
  • Ideal for internal & external applications
  • Suitable for residential, commercial and aged care

Fittings

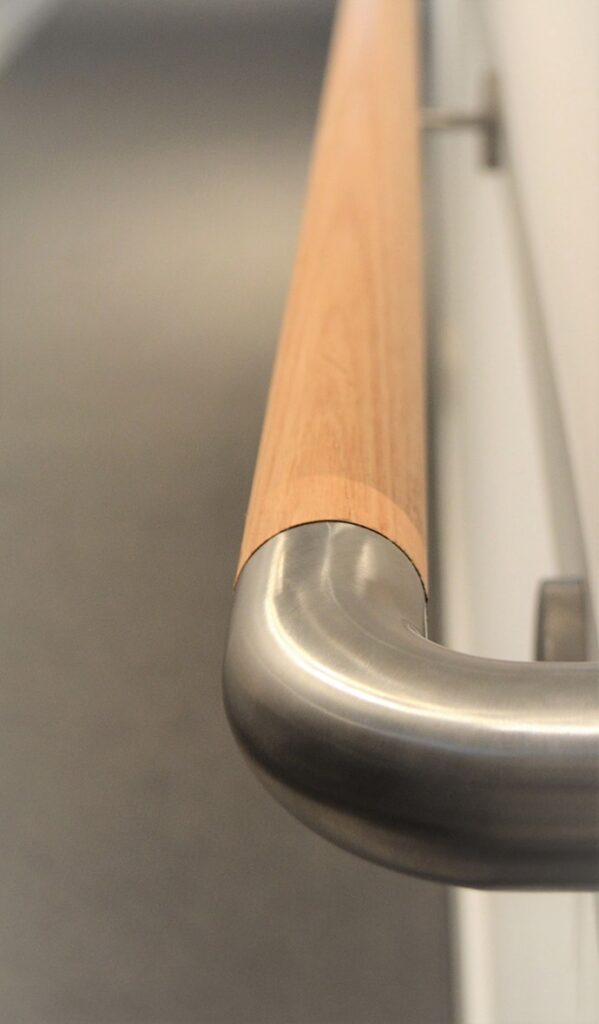

Porta-Handrail-System-Bend-90-degrees

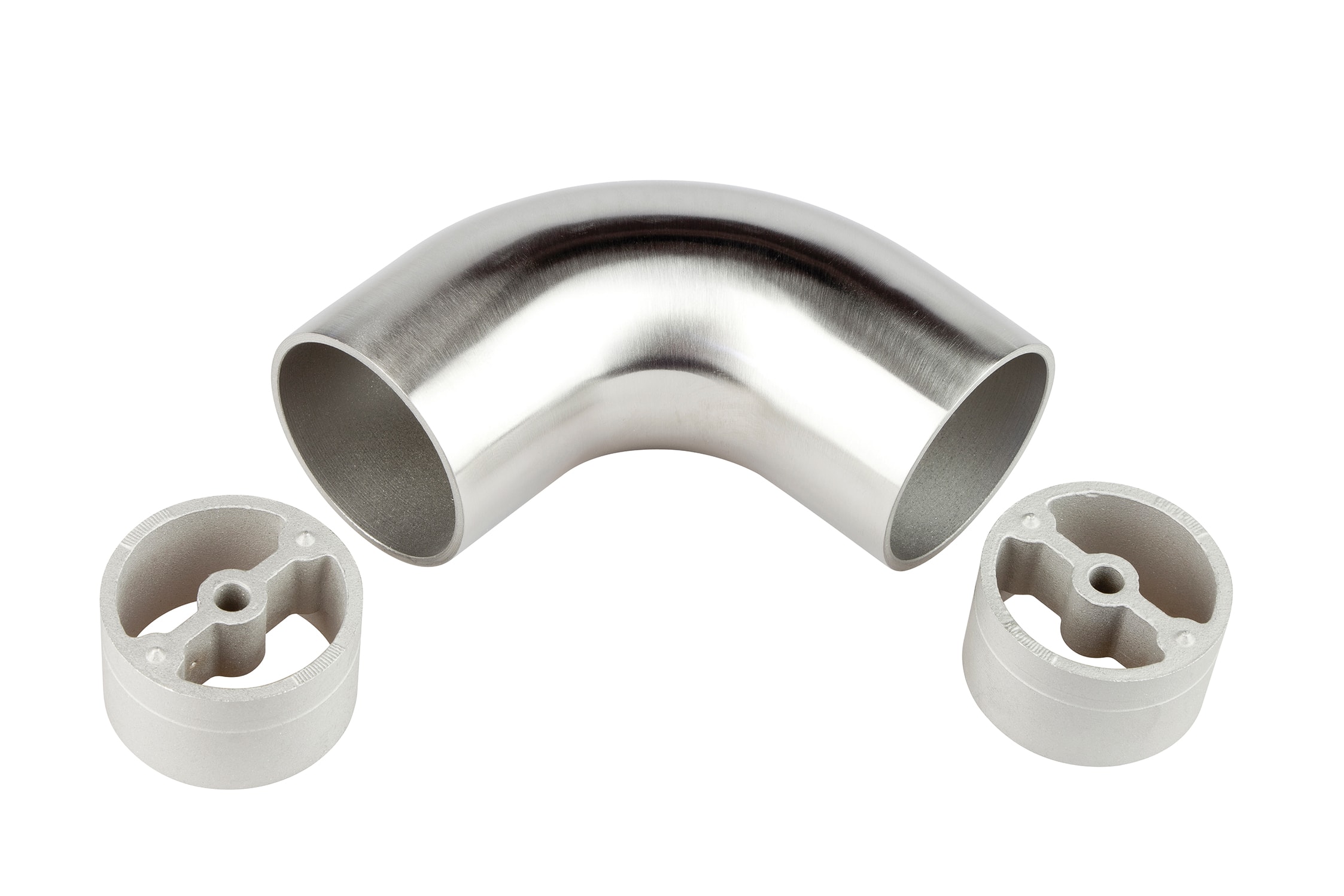

Bend – 90° *

HDRBEND6531643
87 x 87mm

Porta-Handrail-System-Matte-Black-Bend-90-degrees
Matte Black Bend – 90° *

HDRBEND65304BLK
87 x 87mm

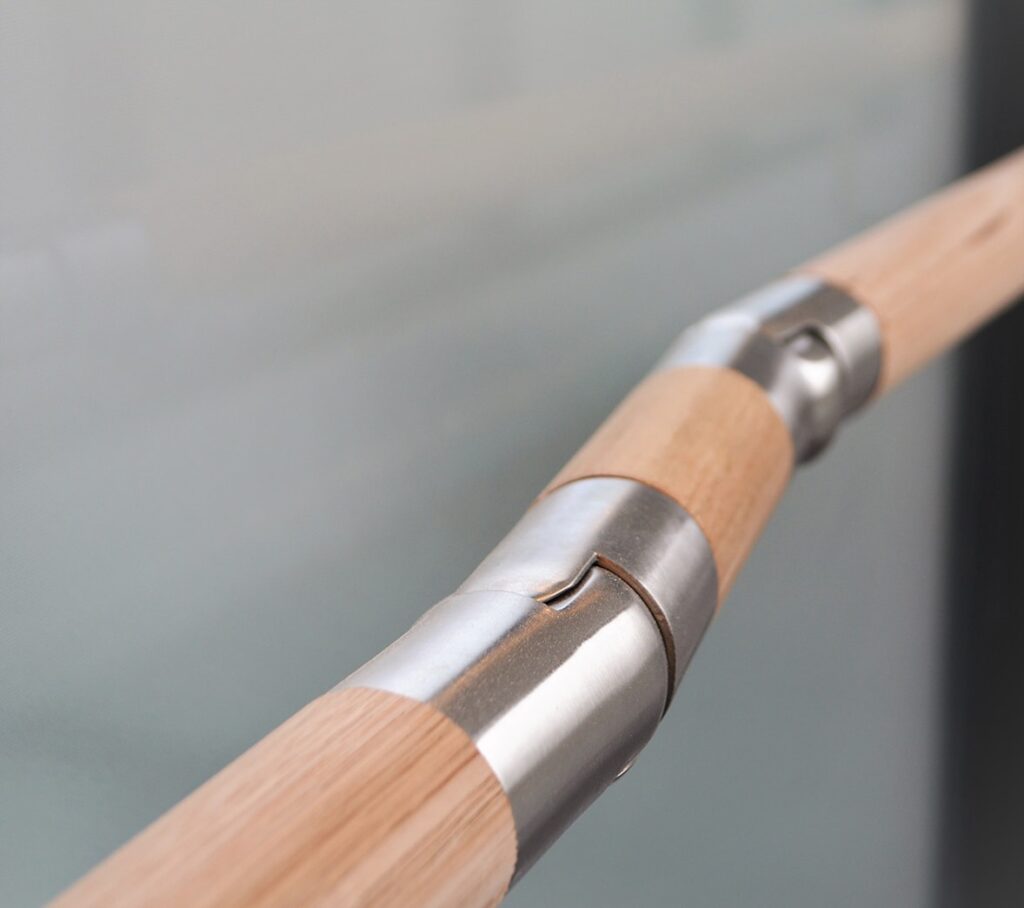

Porta-Handrail-System-Adjustable-bend
Adjustable Bend 0°- 70°*

HDRADJ10031643
100mm

Porta-Handrail-System-Matte-Black-Adjustable-bend
Matte Black Adjustable Bend 0°- 70°*

HDRADJ100304BLK
100mm

Porta-Handrail-System-Adjustable-bend

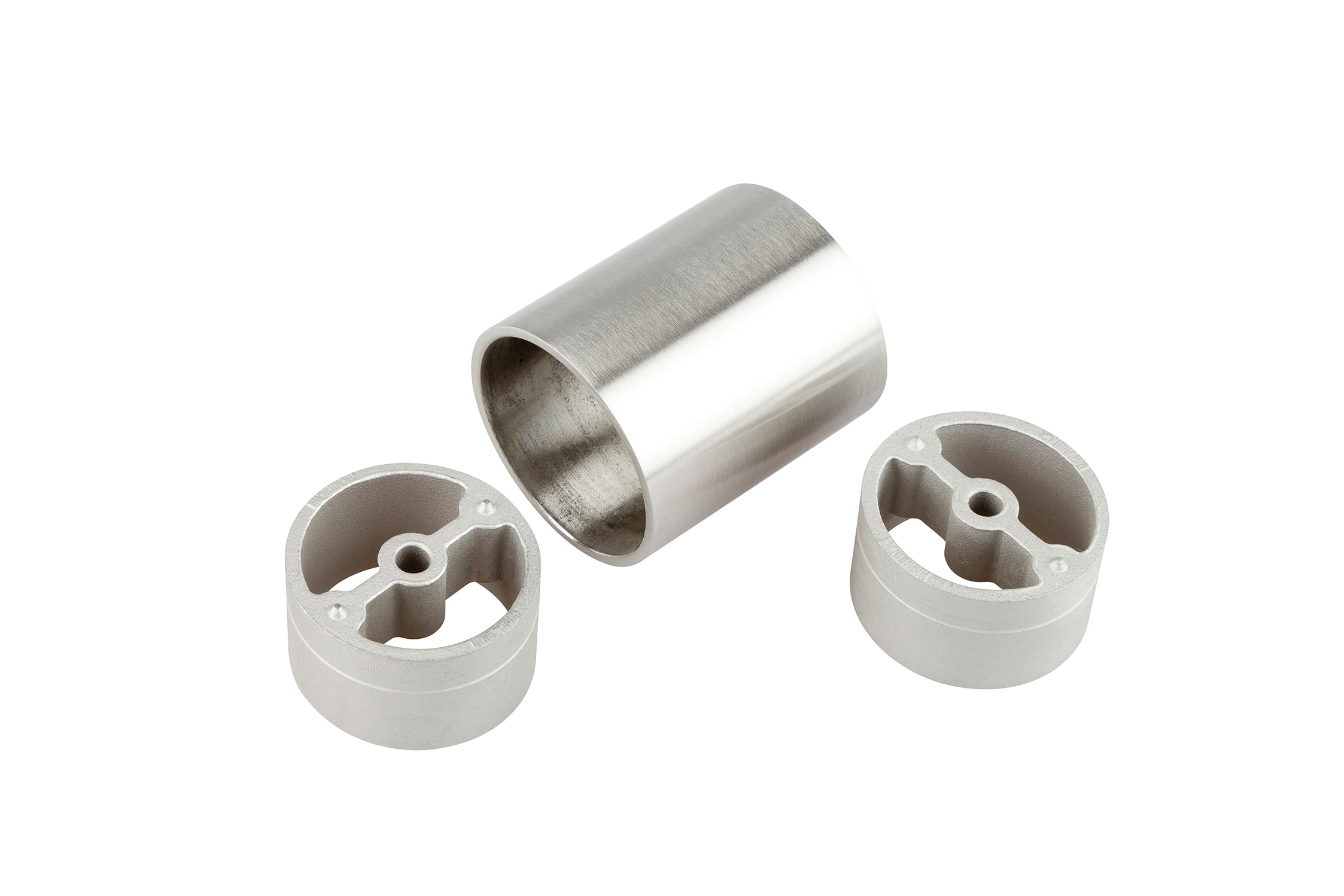

Joiner*

HDRJOIN5031643
50mm

Porta-Handrail-Alignment-jig
Matte Black Joiner*

HDRJOIN50304BLK
50mm

Porta-Handrail-Alignment-jig
End Cap*

HDRCAP3031643
30mm long

Porta-Handrail-Matte-Black-End-Cap
Matte Black End Cap*

HDRCAP30304BLK
30mm long

Wall Bracket

HDRBRAC7031643
75mm wall to centre line of handrail. 70mm diameter escutcheon.

Porta-Handrail-Matte-Black-Wall-Bracket

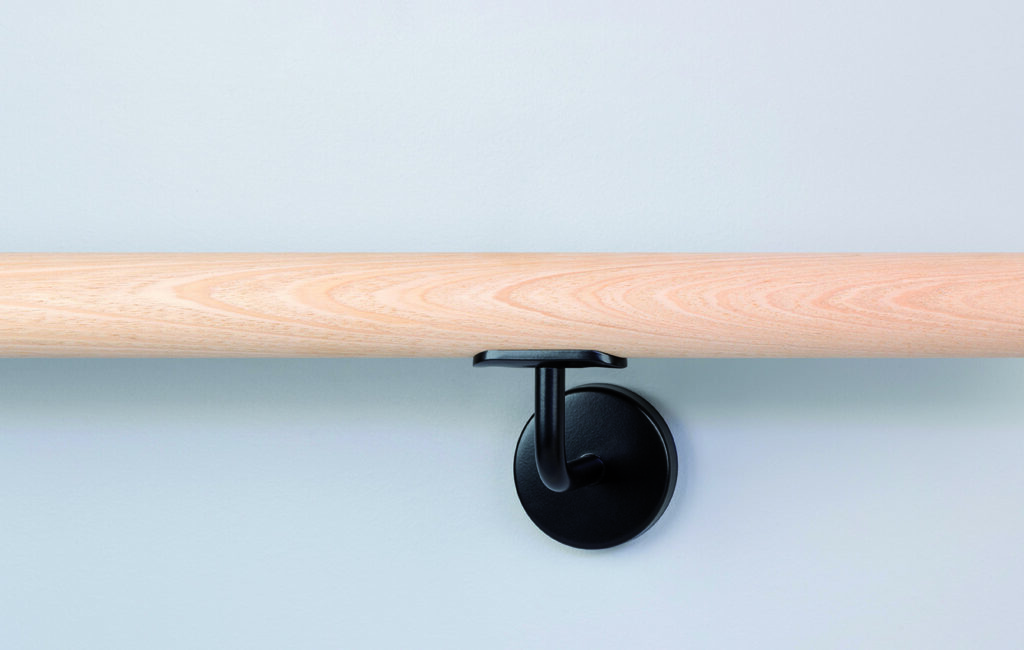

Matte Black Wall Bracket

HDRBRAC70304BLK
75mm wall to centre line of handrail. 70mm diameter escutcheon.

Porta-Handrail-Alignment-jig

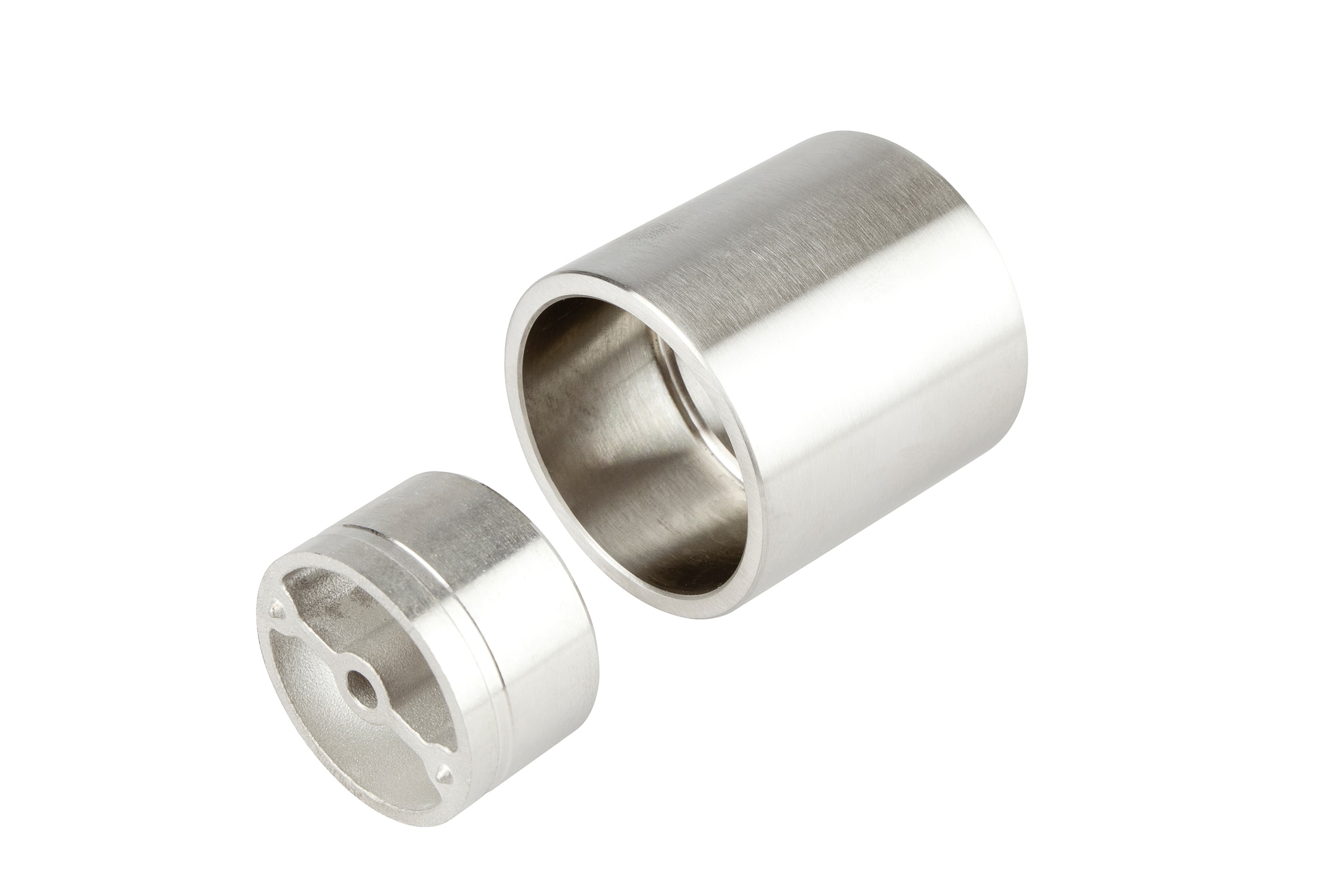

Connector Jig

HDRJIG31643

Porta-Handrail-Connector

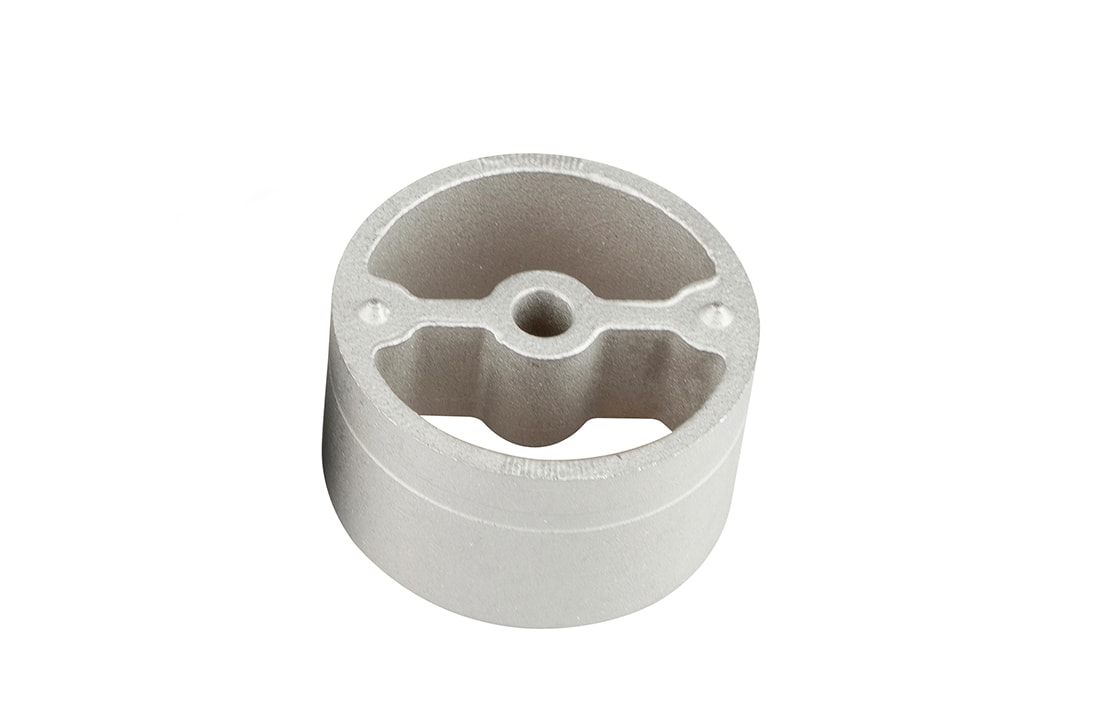

Connector

2 Connectors are supplied for each Bend, Adjustable Bend or Joiner.
1 Connector supplied for each Terminating Bend & End Cap.

*Screws are not supplied with fittings. All fittings suit 43mm Dowel Handrail.

OTHER RECOMMENDED PARTS – Supplied by others Connector Adhesive Loctite® 680TM, Selleys® Power Grip™ or equivalent high strength retaining compound. Screws for Connector Countersunk Head 10g x 50mm. Use appropriate fixing to suit the application.

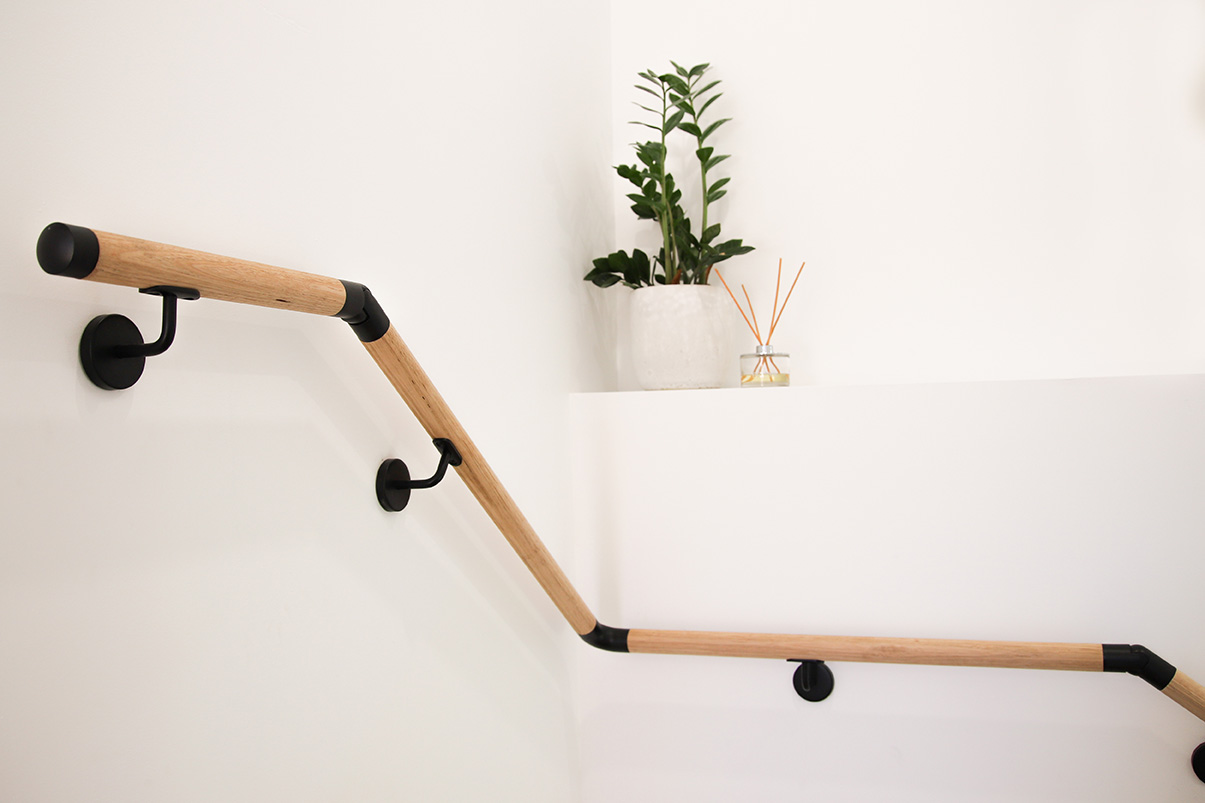

Inspiration

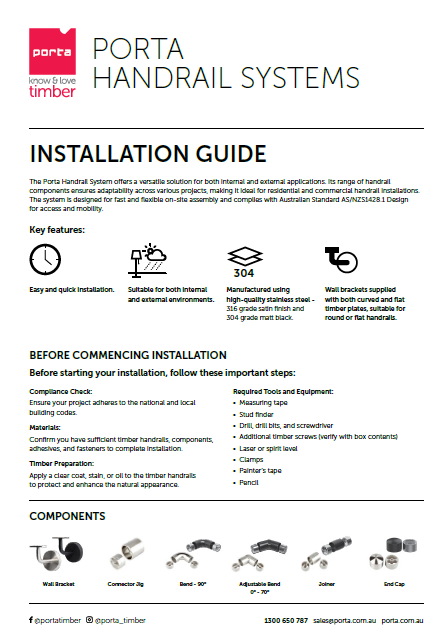

Preparation and Installation

The range of components allows for a broad range of applications; both internal and in external uses. Before commencing to install the handrail system, check that there is sufficient handrail, components, adhesive and fasteners

Handrail & Brackets

▪ Measure the desired height of handrail, measure down 110mm to line up the bottom of the brackets. Mark the wall or use a laser level. Locate the brackets at a maximum of 900mm spacing.

▪ The brackets must be securely fixed to the wall. Fixings should be selected so the installed handrail can resist at least a 60kg load. Preferably fix into a timber wall frame, directly into brickwork or onto a separate rail securely fixed to the wall. Use a Pan Head12g x 50mm screw to fix through 10mm plasterboard and into a timber frame. If fixing directly into the wall lining, ensure fixing plugs are appropriate for the application and securely fixed.

▪ Rest the handrail onto the brackets and mark the desired length. Cut the handrail to length (protect the cut line with masking tape and cut using an 80-100 tooth saw). Sand the cut edge forming a slight bevel with fine sandpaper (220 grit).

Connecting Fittings

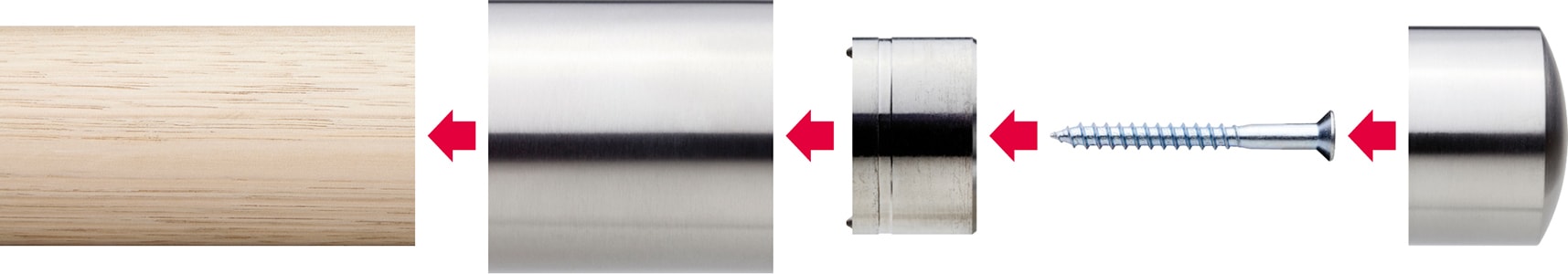

Refer to the diagram below:

▪ Locate the Alignment Jig onto the end of handrail, position the Connector inside the Jig and drill a 3.0mm diameter pilot hole. Use a 10 gauge x 50mm Countersunk screw to fix the Connector to the handrail.

▪ Use a high strength slow cure retained compound adhesive (Loctite® 680TM or equivalent high strength retaining compound) to adhere the components to the connectors (adhesive not provided). Make final alignment adjustments and allow to cure.

Porta-Handrail-Install

Resources

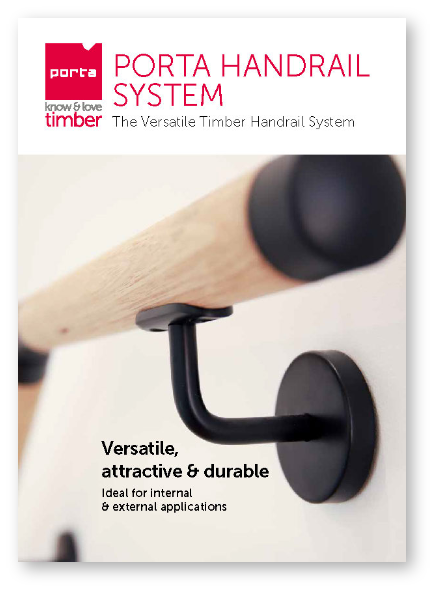

Porta Handrail System Brochure

Suitable for residential, commercial and aged care projects.

Porta-Handrail-System-4pp-Brochure-Feb-2020_Page_1@2x

Timber Handrails & Balustrades Technical Data Sheet (QLD)

Issued by Timber Queensland. This data sheet provides general guidance on member sizes, connections and suitable materials for the construction of handrails and balustrades. The information provided in this data sheet does not preclude the use of manufacturer’s proprietary information where this satisfies the requirements of the regulatory authority.

Stairs, Balustrades & Handrails Technical Design Guide (QLD)

Issued by Forest and Wood Products Australia. This guide covers stairs with straight flights, with or without risers for external and internal use and balustrades.

Handrail Warranty Statement

The document provides a 5-year warranty for Porta Mouldings’ handrail products, covering defects in materials or workmanship, along with consumer rights under Australian law.

Technical Information

Porta Handrail System commercial grade satin-finish 316 stainless steel fittings are compliant to Residential (NCC Vol 2: Class 1 & 10) and Commercial (NCC Vol 1: Class 2 and NCC Class 3/9a Aged Care Facilities) requirements. Materials listed to be supplied to specified areas, or otherwise quantified.

Installation shall comply with relevant building codes using approved fixing and the work executed by competent tradespersons. All materials delivered to the site shall be stored in an enclosed area, provided with protection from damage and exposure to the elements.

Damaged or deteriorated material shall be immediately removed from site. Upon completion of the installation, check that all fittings and handrail are securely fastened. Finish with a suitable coating (if applicable).
